2012 Articles:

(Dateline: December 2012) Partnering to Solve Saturn’s Mysteries

(Dateline: November 2012) It Takes More Than Warm Porridge to Make a Goldilocks Zone

(Dateline: October 2012) A Cosmic Tease: Trials of the Herschel Space Telescope Science Teams

(Dateline: September 2012) Doing Science with a Spacecraft’s Signal

(Dateline: August 2012) A Brand New Age: Queue Observing at Mt. Paranal

There was no July 2012 article

(Dateline: June 2012) How Many Discoveries Can You Make in a Month?

(Dateline: May 2012) Thank Goodness for Magnetism

(Dateline: April 2012) NASA Helps Europe Study a Comet– Up Close and Personal

(Dateline: March 2012) The Planet in the Machine

(Dateline: February 2012) The Hidden Power of Sea Salt, Revealed

(Dateline: January 2012) The Nerdiest Video Game Ever

Partnering to Solve Saturn’s Mysteries

By Diane K. Fisher

From December 2010 through mid-summer 2011, a giant storm raged in Saturn’s northern hemisphere. It was clearly visible not only to NASA’s Cassini spacecraft orbiting Saturn, but also astronomers here on Earth—even those watching from their back yards. The storm came as a surprise, since it was about 10 years earlier in Saturn’s seasonal cycle than expected from observations of similar storms in the past. Saturn’s year is about 30 Earth years. Saturn is tilted on its axis (about 27° to Earth’s 23°), causing it to have seasons as Earth does.But even more surprising than the unseasonal storm was the related event that followed.

First, a giant bubble of very warm material broke through the clouds in the region of the now-abated storm, suddenly raising the temperature of Saturn’s stratosphere over 150 °F. Accompanying this enormous “burp” was a sudden increase in ethylene gas. It took Cassini’s Composite Infrared Spectrometer instrument to detect it.

According to Dr. Scott Edgington, Deputy Project Scientist for Cassini, “Ethylene [C2H4] is normally present in only very low concentrations in Saturn’s atmosphere and has been very difficult to detect. Although it is a transitional product of the thermochemical processes that normally occur in Saturn’s atmosphere, the concentrations detected concurrent with the big ‘burp’ were 100 times what we would expect.”

So what was going on?

Chemical reaction rates vary greatly with the energy available for the process. Saturn’s seasonal changes are exaggerated due to the effect of the rings acting as venetian blinds, throwing the northern hemisphere into shade during winter. So when the Sun again reaches the northern hemisphere, the photochemical reactions that take place in the atmosphere can speed up quickly. If not for its rings, Saturn’s seasons would vary as predictably as Earth’s.

But there may be another cycle going on besides the seasonal one. Computer models are based on expected reaction rates for the temperatures and pressures in Saturn’s atmosphere, explains Edgington. However, it is very difficult to validate those models here on Earth. Setting up a lab to replicate conditions on Saturn is not easy!

Also contributing to the apparent mystery is the fact that haze on Saturn often obscures the view of storms below. Only once in a while do storms punch through the hazes. Astronomers may have previously missed large storms, thus failing to notice any non-seasonal patterns.

As for atmospheric events that are visible to Earth-bound telescopes, Edgington is particularly grateful for non-professional astronomers. While these astronomers are free to watch a planet continuously over long periods and record their finding in photographs, Cassini and its several science instruments must be shared with other scientists. Observation time on Cassini is planned more than six months in advance, making it difficult to immediately train it on the unexpected. That’s where the volunteer astronomers come in, keeping a continuous watch on the changes taking place on Saturn. Edgington says, “Astronomy is one of those fields of study where amateurs can contribute as much as professionals.” Go to http://saturn.jpl.nasa.gov/ to read about the latest Cassini discoveries. For kids, The Space Place has lots of ways to explore Saturn at http://spaceplace.nasa.gov/search/cassini/.

This article was provided by the Jet Propulsion Laboratory, California Institute of Technology, under a contract with the National Aeronautics and Space Administration.

Caption: This false-colored Cassini image of Saturn was taken in near-infrared light on January 12, 2011. Red and orange show clouds deep in the atmosphere. Yellow and green are intermediate clouds. White and blue are high clouds and haze. The rings appear as a thin, blue horizontal line.

Back to Top

It Takes More Than Warm Porridge to Make a Goldilocks Zone

By Diane K. Fisher

The “Goldilocks Zone” describes the region of a solar system that is just the right distance from the star to make a cozy, comfy home for a life-supporting planet. It is a region that keeps the planet warm enough to have a liquid ocean, but not so warm that the ocean boils off into space. Obviously, Earth orbits the Sun in our solar system’s “Goldilocks Zone.”

But there are other conditions besides temperature that make our part of the solar system comfortable for life. Using infrared data from the Spitzer Space Telescope, along with theoretical models and archival observations, Rebecca Martin, a NASA Sagan Fellow from the University of Colorado in Boulder, and astronomer Mario Livio of the Space Telescope Science Institute in Baltimore, Maryland, have published a new study suggesting that our solar system and our place in it is special in at least one other way.

This fortunate “just right” condition involves Jupiter and its effect on the asteroid belt.

Many other solar systems discovered in the past decade have giant gas planets in very tight orbits around their stars. Only 19 out of 520 solar systems studied have Jupiter-like planets in orbits beyond what is known as the “snow line”—the distance from the star at which it is cool enough for water (and ammonia and methane) to condense into ice. Scientists believe our Jupiter formed a bit farther away from the Sun than it is now. Although the giant planet has moved a little closer to the Sun, it is still beyond the snow line.

So why do we care where Jupiter hangs out? Well, the gravity of Jupiter, with its mass of 318 Earths, has a profound effect on everything in its region, including the asteroid belt. The asteroid belt is a region between Mars and Jupiter where millions of mostly rocky objects (some water-bearing) orbit. They range in size from dwarf planet Ceres at more than 600 miles in diameter to grains of dust. In the early solar system, asteroids (along with comets) could have been partly responsible for delivering water to fill the ocean of a young Earth. They could have also brought organic molecules to Earth, from which life eventually evolved.

Jupiter’s gravity keeps the asteroids pretty much in their place in the asteroid belt, and doesn’t let them accrete to form another planet. If Jupiter had moved inward through the asteroid belt toward the Sun, it would have scattered the asteroids in all directions before Earth had time to form. And no asteroid belt means no impacts on Earth, no water delivery, and maybe no life-starting molecules either. Asteroids may have also delivered such useful metals as gold, platinum, and iron to Earth’s crust.

But, if Jupiter had not migrated inward at all since it formed father away from the Sun, the asteroid belt would be totally undisturbed and would be a lot more dense with asteroids than it is now. In that case, Earth would have been blasted with a lot more asteroid impacts, and life may have never had a chance to take root.

The infrared data from the Spitzer Space Telescope contributes in unexpected ways in revealing and supporting new ideas and theories about our universe. Read more about this study and other Spitzer contributions at spitzer.caltech.edu. Kids can learn about infrared light and enjoy solving Spitzer image puzzles at http://spaceplace.nasa.gov/spitzer-slyder.

This article was provided by the Jet Propulsion Laboratory, California Institute of Technology, under a contract with the National Aeronautics and Space Administration.

Caption: Our solar system is represented by the middle scenario, where the gas giant planet has migrated inward, but still remains beyond the asteroid belt.

Back to Top

A Cosmic Tease: Trials of the Herschel Space Telescope Science Teams

By Dr. Marc J. Kuchner

Vast fields of marble-sized chunks of ice and rock spun slowly in the darkness this week, and I sat in the back of a grey conference room with white plastic tables spread with papers and laptops. I was sitting in on a meeting of an international team of astronomers gathered to analyze data from the Herschel Infrared Observatory. This telescope, sometimes just called Herschel, orbits the Sun about a million miles from the Earth.

The meeting began with dinner at Karl’s house. Karl charred chorizo on the backyard grill while the airplanes dribbled into Dulles airport. Our colleagues arrived, jetlagged and yawning, from Germany, Sweden, and Spain, and we sat on Karl’s couches catching up on the latest gossip. The unemployment level in Spain is about twenty percent, so research funding there is hard to come by these days. That’s not nice to hear. But it cheered us up to be with old friends.

The meeting commenced the next morning, as the vast fields of ice and rock continued to spin—shards glinting in the starlight. Or maybe they didn’t. Maybe they didn’t exist at all.

You see, this team is looking at a series of images of stars taken by a device called a bolometer that is blind to ordinary starlight. Instead, the bolometer inside Herschel senses infrared light, a kind of light that we would probably refer to as heat if we could feel it. But the idea of pointing the bolometer at the stars was not to collect ordinary starlight. It was to measure heat coming from the vicinity of these stars, like an infrared security camera, in case there was something else to be found lurking nearby.

And lo and behold, for a handful of stars, the bolometer measurements were off the charts! Maybe something was orbiting these stars. From the details of the bolometer readings—which channels lit up and so on—you would guess that this stuff took the form of majestic fields or rings of icy and rocky particles. It would be a new kind of disk, a discovery worth writing home to Madrid about.

There are several teams of astronomers analyzing data from the Herschel Space Telescope. They call themselves by oddly inappropriate sounding acronyms: GASPS, DUNES, DEBRIS. For the time being, the scientists on these teams are the only ones with access to the Herschel data. But in January, all the data these teams are working on will suddenly be released to the public. So they are all under pressure to finish their work by then. The team whose meeting I was sitting in on would like to publish a paper about the new disks by then.

But it’s not so simple. The stars that this team had measured were relatively nearby as stars go, less than a few hundred light years. But the universe is big, and full of galaxies of all kinds—a sea of galaxies starting from maybe a hundred thousand light years away, and stretching on and on. Maybe one of those background galaxies was lined up with each of the stars that had lit up the bolometer—fooling us into thinking they were seeing disks around these stars.

The team argued and paced, and then broke for lunch. We marched to the cafeteria through the rain. Meanwhile, vast fields of marble-sized chunks of ice and rock spun slowly in the darkness. Or maybe they didn’t.

What else did Herschel recently uncover? Find out at http://spaceplace.nasa.gov/comet-ocean.

Dr. Marc J. Kuchner is an astrophysicist at the Exoplanets and Stellar Astrophysics Laboratory at NASA’s Goddard Space Flight Center. NASA’s Astrophysics Division works on big questions about the origin and evolution of the universe, galaxies, and planetary systems. Explore more at http://www.science.nasa.gov/astrophysics/.

This article was provided by the Jet Propulsion Laboratory, California Institute of Technology, under a contract with the National Aeronautics and Space Administration.

Caption: Samuel Pierpoint Langley, who developed the bolometer in 1878. His instrument detects a broad range of infrared wavelengths, sensitive to differences in temperature of one hundred-thousandth of a degree Celsius (0.00001 C). In 1961, Frank Low developed the germanium bolometer, which is hundreds of times more sensitive than previous detectors and capable of detecting far-infrared radiation.

Back to Top

Doing Science with a Spacecraft’s Signal

By David Doody

Mariner 2 to Venus, the first interplanetary flight, was launched August 27 fifty years ago. This was a time when scientists were first learning that Venus might not harbor jungles under its thick atmosphere after all. A Russian scientist had discovered that atmosphere during the rare Venus transit of 1761, because of the effects of sunlight from behind.

Mariner 2 proved interplanetary flight was possible, and our ability to take close-up images of other planets would be richly rewarding in scientific return. But it also meant we could use the spacecraft itself as a “light” source, planting it behind an object of our choosing and making direct measurements.

Mariner 4 did the first occultation experiment of this sort when it passed behind Mars as seen from Earth in July 1965. But, instead of visible light from the Sun, this occultation experiment used the spacecraft’s approximately 2-GHz radio signal.

The Mariner 4 experiment revealed Mars’ thin atmosphere. Since then, successful radio science occultation experiments have been conducted at every planet and many large moons. And another one is on schedule to investigate Pluto and its companion Charon, when the New Horizons spacecraft flies by in July 2015. Also, during that flyby, a different kind of radio science experiment will investigate the gravitational field.

The most recent radio science occultation experiment took place September 2, 2012, when the Cassini spacecraft carried its three transmitters  behind Saturn. These three different frequencies are all kept precisely “in tune” with one another, based on a reference frequency sent from Earth. Compared to observations of the free space for calibration just before ingress to occultation, the experiment makes it possible to tease out a wide variety of components in Saturn's ionosphere and atmosphere.

Occultation experiments comprise only one of many categories of radio science experiments. Others include tests of General Relativity, studying the solar corona, mapping gravity fields, determining mass, and more. They all rely on NASA’s Deep Space Network to capture the signals, which are then archived and studied.

Find out more about spacecraft science experiments in “Basics of Space Flight,” a website and book by this author, http://www2.jpl.nasa.gov/basics. Kids can learn all about NASA’s Deep Space Network by playing the “Uplink-Downlink” game at http://spaceplace.nasa.gov/dsn-game.

This article was provided by the Jet Propulsion Laboratory, California Institute of Technology, under a contract with the National Aeronautics and Space Administration.

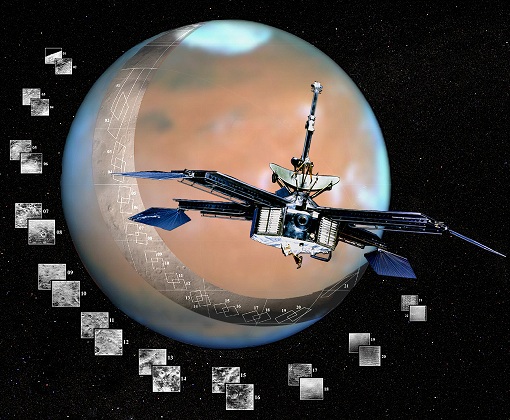

Caption: In this poster art of Mariner 4, you can see the parabolic reflector atop the spacecraft bus. Like the reflector inside a flashlight, it sends a beam of electromagnetic energy in a particular direction. Credit: NASA/JPL/Corby Waste.

Back to Top

A Brand New Age: Queue Observing at Mt. Paranal

By Dr. Marc J. Kuchner

First a caravan of white observatory cars arrives, winding up the narrow road to the 2600-m- (~8500-foot-) high summit. Then the shutters around the domes open, and rays from the setting sun alight on colossal mirrors and metal struts. It’s the beginning of another busy night at Mt. Paranal, Chile, where I am learning about new, more efficient ways of managing a modern observatory.

I stepped into the observatory’s control room to soak up some of the new, unfamiliar culture. Here, under florescent lights and drop ceilings are banks of computer screens, one bank to control each of the four big telescopes on the mountaintop and a few others too. At each bank sits two people, a telescope operator and an astronomer.

The layout of this workspace was not unfamiliar to me. But the way these Mt. Paranal astronomers work certainly was. When I was cutting my teeth at Mt. Palomar observatory in California, I would only go to the telescope to take my own data. In stark contrast, everyone observing at Mt Paranal tonight is taking data for someone else.

The Mt. Paranal astronomers each spend 105 nights a year here on the mountain performing various duties, including taking data for other astronomers. The latter, they call “executing the queue.” Headquarters in Germany decides what parts of the sky will have priority on any given night (the queue). Then the Mt. Paranal astronomers march up the mountain and carry out this program, choosing calibrators, filling the log books, and adapting to changing conditions. They send the data back to headquarters, and from there it makes its way out to the wider astronomical community for study.

This new way of working allows the Mt. Paranal astronomers to specialize in just one or two telescope instruments each. Surely this plan is more efficient than the old-fashioned way, where each of us had to learn every instrument we used from scratch—sifting through manuals at 3:00 AM when the filter wheel got stuck or the cryogen ran out, watching precious observing time tick away. Here at Mt. Paranal, much of the work is done in a big room full of people, not off by yourself, reducing some dangers of the process. Also, queue observing cuts down on plane travel, an important step for cutting carbon emissions.

It’s a brand new age, I thought as I watched the giant domes spin in the silent, cold Chilean night. And maybe with queue observing, some of the romance is gone. Still, my colleagues and I couldn’t help saying as we stared out across the moonlit mountains: I can’t believe how lucky we are to be here.

Dr. Marc J. Kuchner is an astrophysicist at the Exoplanets and Stellar Astrophysics Laboratory at NASA’s Goddard Space Flight Center. NASA’s Astrophysics Division works on big questions about the origin and evolution of the universe, galaxies, and planetary systems. Explore more at http://www.science.nasa.gov/astrophysics/. Kids can explore these topics at http://spaceplace.nasa.gov/space.

This article was provided by the Jet Propulsion Laboratory, California Institute of Technology, under a contract with the National Aeronautics and Space Administration.

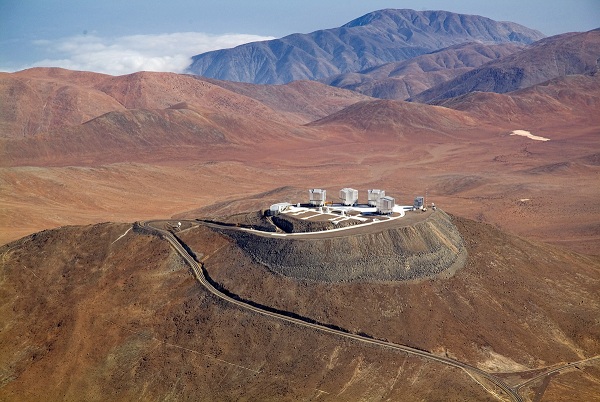

Caption: European Southern Observatory at Mt. Paranal, Chile.

Back to Top

How Many Discoveries Can You Make in a Month?

By Dr. Tony Phillips

This year NASA has announced the discovery of 11 planetary systems hosting 26 planets; a gigantic cluster of galaxies known as “El Gordo;” a star exploding 9 billion light years away; alien matter stealing into the solar system; massive bullets of plasma racing out of the galactic center; and hundreds of unknown objects emitting high-energy photons at the edge of the electromagnetic spectrum.

That was just January.

Within NASA’s Science Mission Directorate, the Astrophysics Division produces such a list nearly every month. Indeed, at this very moment, data is pouring in from dozens of spacecraft and orbiting observatories.

“The Hubble, Spitzer, Chandra, and Fermi space telescopes continue to make groundbreaking discoveries on an almost daily basis,” says NASA Administrator Charlie Bolden(1).

NASA astrophysicists and their colleagues conduct an ambitious research program stretching from the edge of the solar system to the edge of the observable Universe. Their work is guided in large part by the National Research Council’s Decadal Survey of Astronomy and Astrophysics, which identified the following priorities:

Finding new planets—and possibly new life—around other stars.

Discovering the nature of dark energy and dark matter.

Understanding how stars and galaxies have evolved since the Big Bang.

Studying exotic physics in extreme places like black holes.

Observing time on Hubble and the other “Great Observatories” is allocated accordingly.

Smaller missions are important, too: The Kepler spacecraft, which is only “medium-sized” by NASA standards, has single-handedly identified more than 2300 planet candidates. Recent finds include planets with double suns, massive “super-Earths” and “hot Jupiters,” and a miniature solar system. It seems to be only a matter of time before Kepler locates an Earth-sized world in the Goldilocks zone of its parent star, just right for life.

A future astrophysics mission, the James Webb Space Telescope, will be able to study the atmospheres of many of the worlds Kepler is discovering now. The telescope’s spectrometers can reveal the chemistry of distant exoplanets, offering clues to their climate, cloud cover, and possibilities for life.

That’s not the telescope’s prime mission, though. With a primary mirror almost 3 times as wide as Hubble’s, and a special sensitivity to penetrating infrared radiation, Webb is designed to look into the most distant recesses of the universe to see how the first stars and galaxies formed after the Big Bang. It is, in short, a Genesis Machine.

Says Bolden, “We’re on track in the construction of the James Webb Space Telescope, the most sophisticated science telescope ever constructed to help us reveal the mysteries of the cosmos in ways never before possible.” Liftoff is currently scheduled for 2018.

How long will the list of discoveries be in January of that year? Stay tuned for Astrophysics.

For more on NASA’s astrophysics missions, check out http://science.nasa.gov/astrophysics/.

Kids can get some of their mind-boggling astrophysics questions answered by resident Space Place astrophysicist “Dr. Marc” at http://spaceplace.nasa.gov/dr-marc-space.

(1)Bolden made these statements in an April 20th editorial he co-authored with John Holdren, Director of the Office of Science and Technology Policy: http://blogs.nasa.gov/cm/blog/bolden/posts/post_1334967201693.html

This article was provided by the Jet Propulsion Laboratory, California Institute of Technology, under a contract with the National Aeronautics and Space Administration.

Caption: Artist’s concepts such as this one are based on infrared spectrometer data from NASA’s Spitzer Space Telescope. This rendering depicts a quadruple-star system called HD 98800. The system is approximately 10 million years old and is located 150 light-years away in the constellation Crater. Credit: NASA/JPL-Caltech/T. Pyle (SSC)

Back to Top

Thank Goodness for Magnetism

By Dr. Tony Phillips

Only 93 million miles from Earth, a certain G-type star is beginning to act up.

Every 11 years or so, the solar cycle brings a period of high solar activity. Giant islands of magnetism— ”sunspots” —break through the stellar surface in increasing numbers. Sometimes they erupt like a billion atomic bombs going off at once, producing intense flares of X-rays and UV radiation, and hurlingsive clouds of plasma toward Earth.

This is happening right now. Only a few years ago the Sun was in a state of deep quiet, but as 2012 unfolds, the pendulum is swinging. Strong flares are becoming commonplace as sunspots once again pepper the solar disk. Fortunately, Earth is defended from solar storms by a strong, global magnetic field.

In March 2012, those defenses were tested.

At the very beginning of the month, a remarkable sunspot appeared on the Sun’s eastern limb. AR1429, as experts called it, was an angry-looking region almost as wide as the planet Jupiter. Almost as soon as it appeared, it began to erupt. During the period March 2nd to 15th, it rotated across the solar disk and fired off more than 50 flares. Three of those eruptions were X-class flares, the most powerful kind.

As the eruptions continued almost non-stop, Earth’s magnetic field was buffeted by coronal mass ejections or “CMEs.” One of those clouds hit Earth’s magnetosphere so hard, our planet’s magnetic field was sharply compressed, leaving geosynchronous satellites on the outside looking in. For a while, the spacecraft were directly exposed to solar wind plasma.

Charged particles propelled by the blasts swirled around Earth, producing the strongest radiation storm in almost 10 years. When those particles rained down on the upper atmosphere, they dumped enough energy in three days alone (March 7-10) to power every residence in New York City for two years. Bright auroras circled both poles, and Northern Lights spilled across the Canadian border into the lower 48 states. Luminous sheets of red and green were sighted as far south as Nebraska.

When all was said and done, the defenses held — no harm done.

This wasn’t the strongest solar storm in recorded history—not by a long shot. That distinction goes to the Carrington Event of September 1859 when geomagnetic activity set telegraph offices on fire and sparked auroras over Mexico, Florida, and Tahiti. Even with that in mind, however, March 2012 was remarkable.

It makes you wonder, what if? What if Earth didn’t have a magnetic field to fend off CMEs and deflect the most energetic particles from the Sun.

The answer might lie on Mars. The red planet has no global magnetic field and as a result its atmosphere has been stripped away over time by CMEs and other gusts of solar wind. At least that’s what many researchers believe. Today, Mars is a desiccated and apparently lifeless wasteland.

Only 93 million miles from Earth, a G-type star is acting up. Thank goodness for magnetism.

With your inner and outer children, read, watch, and listen in to “Super Star Meets the Plucky Planet,” a rhyming and animated conversation between the Sun and Earth, at http://spaceplace.nasa.gov/story-superstar.

This article was provided by the Jet Propulsion Laboratory, California Institute of Technology, under a contract with the National Aeronautics and Space Administration.

Caption: Multiple-wavelength view of X5.4 solar flare on March 6, captured by the Solar Dynamics Observatory (SDO) in multiple wavelengths (94, 193, 335 angstroms). Credit: NASA/SDO/AIA

Back to Top

NASA Helps Europe Study a Comet– Up Close and Personal

By Dr. Tony Phillips

Europe’s Rosetta spacecraft is on its way to intercept comet 67P/Churyumov-Gerasimenko. Comets have been intercepted before, but this mission is different. Rosetta aims to make history by landing a probe on the comet’s surface while the mother ship orbits overhead.

“Rosetta is the European equivalent of a NASA flagship mission,” explains Claudia Alexander, project scientist for the U.S. Rosetta Project at NASA's Jet Propulsion Laboratory. “It will conduct the most comprehensive study of a comet ever performed.”

Rosetta’s payload contains 21 instruments (11 on the orbiter, 10 on the lander) designed to study almost every aspect of the comet’s chemistry, structure, and dynamics. Three of the sensors were contributed by the U.S.: Alice (an ultraviolet spectrometer), IES (an ion and electron sensor), and MIRO (a microwave sounder).

The main event of the mission will likely be the landing. The 100-kg lander, which looks a bit like a cross between NASA’s old Viking Mars landers and a modern microsatellite, will spend two weeks fastened to the comet’s icy surface. The European-built probe will collect samples for analysis by onboard microscopes and take stunning panoramic images from ground level.

“First the lander will study the surface from close range to establish a baseline before the comet becomes active,” explains Alexander. “Then the orbiter will investigate the flow of gas and dust around the comet's active, venting nucleus.”

Rosetta’s sensors will perform the experiments that reveal how the chemicals present interact with one another and with the solar wind. Alice and MIRO detect uncharged atoms and molecules, while IES detects the ions and electrons as the solar wind buffets the nucleus.

One problem that often vexes astronomers when they try to study comets is visibility. It’s hard to see through the dusty veil of gas billowing away from the heated nucleus. The microwaves MIRO detects can penetrate the dust, so MIRO can see and measure its target molecules even when other instruments can’t.

MIRO is one of several experiments focused on the comet’s structural properties. It will determine the comet’s dielectric constant, emissivity, and thermal conductivity to determine whether it is made of a powdery loose material, has a detectable layer of loose material, or is hard as rock.

“We want to find out whether comets have retained material from when the solar system formed,” says Alexander. “If the ancient materials are still there, we can get an idea of what conditions were like at the dawn of the solar system.”

Rosetta enters orbit in 2014. Stay tuned for updates!

Check out “Comet Quest,” the new, free iPhone/iPad game that has you operating the Rosetta spacecraft yourself. Get the link at http://spaceplace.nasa.gov/comet-quest.

This article was provided by the Jet Propulsion Laboratory, California Institute of Technology, under a contract with the National Aeronautics and Space Administration.

Caption: Rosetta’s lander Philae will eject from the spacecraft, touch down on the comet’s nucleus, and immediately fire a harpoon into the surface to anchor itself, so it won’t drift off in the weak gravity.

Back to Top

The Planet in the Machine

By Diane K. Fisher and Tony Phillips

The story goes that a butterfly flapping its wings in Brazil can, over time, cause a tornado in Kansas. The “butterfly effect” is a common term to evoke the complexity of interdependent variables affecting weather around the globe.  It alludes to the notion that small changes in initial conditions can cause wildly varying outcomes.

Now imagine millions of butterflies flapping their wings.  And flies and crickets and birds.  Now you understand why weather is so complex.

All kidding aside, insects are not in control.  The real “butterfly effect” is driven by, for example, global winds and ocean currents, polar ice (melting and freezing), clouds and rain, and blowing desert dust.  All these things interact with one another in bewilderingly complicated ways.

And then there’s the human race. If a butterfly can cause a tornado, what can humans cause with their boundlessly reckless disturbances of initial conditions?

Understanding how it all fits together is a relatively new field called Earth system science. Earth system scientists work on building and fine-tuning mathematical models (computer programs) that describe the complex inter-relationships of Earth’s carbon, water, energy, and trace gases as they are exchanged between the terrestrial biosphere and the atmosphere.  Ultimately, they hope to understand Earth as an integrated system, and model changes in climate over the next 50-100 years.  The better the models, the more accurate and detailed will be the image in the crystal ball.

NASA’s Earth System Science program provides real-world data for these models via a swarm of Earth-observing satellites.  The satellites, which go by names like Terra and Aqua, keep an eye on Earth’s land, biosphere, atmosphere, clouds, ice, and oceans.  The data they collect are crucial to the modeling efforts.

Some models aim to predict short-term effects—in other words, weather.  They may become part of severe weather warning systems and actually save lives. Other models aim to predict long-term effects—or climate.  But, long-term predictions are much more difficult and much less likely to be believed by the general population, since only time can actually prove or disprove their validity.  After all, small errors become large errors as the model is left to run into the future.  However, as the models are further validated with near- and longer-term data, and as different models converge on a common scenario, they become more and more trustworthy to show us the future while we can still do something about it—we hope.

For a listing and more information on each of NASA’s (and their partners’) Earth data-gathering missions, visit http://science.nasa.gov/earth-science/missions/.

Kids can get an easy introduction to Earth system science and play Earthy word games at http://spaceplace.nasa.gov/ecosphere.

This article was provided by the Jet Propulsion Laboratory, California Institute of Technology, under a contract with the National Aeronautics and Space Administration.

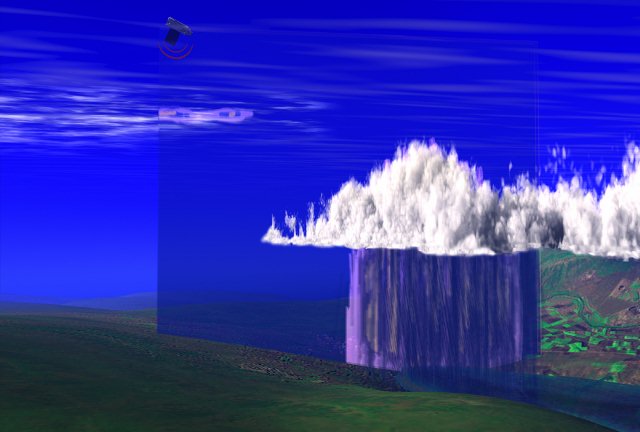

Caption:CloudSat is one of the Earth-observing satellites collecting data that will help develop and refine atmospheric circulation models and other types of weather and climate models. CloudSat’s unique radar system reads the vertical structure of clouds, including liquid water and ice content, and how clouds affect the distribution of the Sun’s energy in the atmosphere. See animation of this data simulation at http://www.nasa.gov/mission_pages/calipso/multimedia/cloud_calip_mm.html.

Back to Top

The Hidden Power of Sea Salt, Revealed

By Dauna Coulter

Last year, when NASA launched the Aquarius/SAC-D satellite carrying the first sensor for measuring sea salt from space, scientists expected the measurements to have unparalleled sensitivity. Yet the fine details it's revealing about ocean saltiness are surprising even the Aquarius team.

"We have just four months of data, but we're already seeing very rich detail in surface salinity patterns," says principal investigator Gary Lagerloef of Earth & Space Research in Seattle. "We're finding that Aquarius can monitor even small scale changes such as specific river outflow and its influence on the ocean."

Using one of the most sensitive microwave radiometers ever built, Aquarius can sense as little as 0.2 parts salt to 1,000 parts water. That's about like a dash of salt in a gallon jug of water.

"You wouldn't even taste it," says Lagerloef. "Yet Aquarius can detect that amount from 408 miles above the Earth. And it's working even better than expected."

Salinity is critical because it changes the density of surface seawater, and density controls the ocean currents that move heat around our planet. A good example is the Gulf Stream, which carries heat to higher latitudes and moderates the climate.

"When variations in density divert ocean currents, weather patterns like temperature and rainfall are affected. In turn, precipitation and evaporation, and fresh water from river outflow and melt ice determine salinity. It's an intricately connected cycle."

The atmosphere is the ocean’s partner. The freshwater exchange between the atmosphere and the ocean dominates the global water cycle. Seventy-eight percent of global rainfall occurs over the ocean, and 85 percent of global evaporation is from the ocean. An accurate picture of the ocean's salinity will help scientists better understand the profound ocean/atmosphere coupling that determines climate variability.

"Ocean salinity has been changing,” says Lagerloef. “Decades of data from ships and buoys tell us so. Some ocean regions are seeing an increase in salinity, which means more fresh water is being lost through evaporation. Other areas are getting more rainfall and therefore lower salinity. We don't know why. We just know something fundamental is going on in the water cycle."

With Aquarius's comprehensive look at global salinity, scientists will have more clues to put it all together. Aquarius has collected as many sea surface salinity measurements in the first few months as the entire 125-year historical record from ships and buoys.

"By this time next year, we'll have met two of our goals: a new global map of annual average salinity and a better understanding of the seasonal cycles that determine climate." Stay tuned for the salty results. Read more about the Aquarius mission at http://aquarius.nasa.gov.

Other NASA oceanography missions are Jason-1 (studying ocean surface topography), Jason-2 (follow-on to Jason-1), Jason-3 (follow-on to Jason-2, planned for launch in 2014), and Seawinds on the QuikSCAT satellite (measures wind speeds over the entire ocean). The GRACE mission (Gravity Recovery and Climate Experiment), among its other gravitational field studies, monitors fresh water supplies underground. All these missions, including Aquarius, are sponsors of a fun and educational ocean game for kids called “Go with the Flow” at http://spaceplace.nasa.gov/ocean-currents.

This article was provided by the Jet Propulsion Laboratory, California Institute of Technology, under a contract with the National Aeronautics and Space Administration.

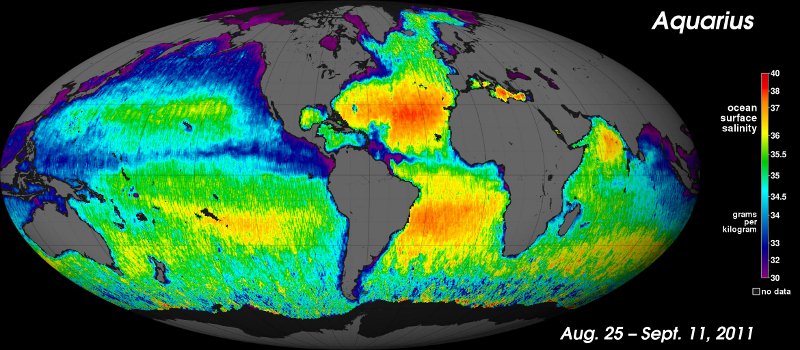

Caption: Aquarius produced this map of global ocean salinity. It is a composite of the first two and a half weeks of data. Yellow and red represent areas of higher salinity, with blues and purples indicating areas of lower salinity.

Back to Top

The Nerdiest Video Game Ever

By Dr. Tony Phillips

NASA has a job opening. Wanted: People of all ages to sort, stack, and catalogue terabytes of simulated data from a satellite that launches in 2015. Agile thumbs required.

Sorting terabytes of data? It’s more fun than it sounds. In fact it’s a game: Satellite Insight. The Space Place Team at the Jet Propulsion Laboratory created the entertaining app for iPhones to get the word out about GOES-R, an advanced Earth science satellite built by NOAA and NASA.

Described by the Los Angeles Times as possibly “the nerdiest game ever,” Satellite Insight may be downloaded for free from Apple’s app store. Be careful, though, once you start playing it’s hard to stop. Some reviewers have likened it to Tetris, one of the most popular video games of all time.

GOES, short for “Geostationary Operational Environmental Satellite,” is the workhorse spacecraft for weather forecasters. NOAA operates two (at a time) in geosynchronous orbit, one above the west coast of N. America and one above the east coast. They monitor clouds, wind, rain, hurricanes, tornadoes and even solar flares. The GOES program has been in action since 1975.

GOES-R is the next-generation satellite with advanced technologies far beyond those of the older GOES satellites. It has sensors for lightning detection, wildfire mapping, storm tracking, search and rescue, solar imaging, and more. Many of the sensors are trailblazers. For example, the Advanced Baseline Imager has 60 times the capability of the current imager—16 channels instead of 5. It has twice the spatial resolution and five times the temporal refresh rate, including the 30-second imaging of weather systems over a region of 1000 km x 1000 km.

Also, the Geostationary Lightning Mapper can count and pinpoint lightning bolts over the Americas 24/7. It’s the first such detector to fly on a geosynchronous satellite, and it could lead to transformative advances in severe storm warning capability.

All in all, GOES-R represents a “huge technological leap from the current GOES.” We know this because Satellite Insight tells us so. The app has an informative “Learn More” feature where players can find out about the satellite and the data they have been sorting.

Which brings us back to sorting data. It’s a bit like eating Cheerios; just don’t tell the kids it’s nutritious, and they love it. Helping GOES-R gather and stash data from all those advanced sensors is just as satisfying, too—a dose of Earth science wrapped in thumb-flying fun.

More information about Satellite Insight may be found on the web at http://itunes.apple.com/us/app/satellite-insight/id463588902?mt=8.

The game also available in web form (flying thumbs optional) at http://spaceplace.nasa.gov/satellite-insight.

This article was provided by the Jet Propulsion Laboratory, California Institute of Technology, under a contract with the National Aeronautics and Space Administration.

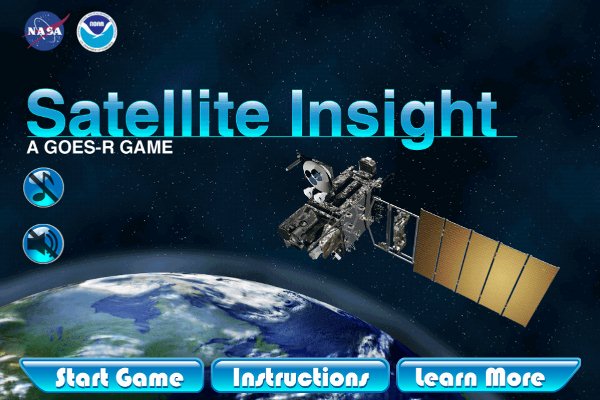

Caption: New iPhone game is first NOAA app and only the second NASA game app. Just as with the real GOES-R, the challenge with Satellite Insight is to keep up with the massive influx of weather and other environmental data.

Back to Top
